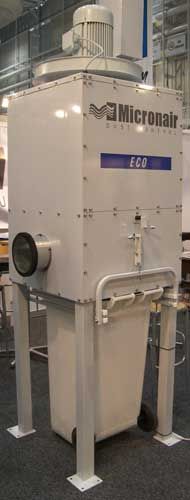

ECO Dust Extractor
Low Demand Small Workshops & School Dust Extraction
The ECO is a compact high suction pressure dust extractor designed for businesses or workshops running 1-3 machines that require high suction pressure and air volumes with relatively light dust loads.
Featuring a a cartridge filter clean-air fan, negative air pressure mounted over the top of 240lt bin it offers a safe and effective way of collecting the dust from difficult applications. The typical applications are wood sanding, sawing and CNC routing, sand blasting, fibreglass, some plastics, flour / cement dust where high levels of suction pressure are required and space is limited
The ECO features suction pressures up to 4600 Pa to handle difficult cleaning and extractions jobs such as edgebanders, panel saws, small CNC routers and machinery with complex head and shroud arrangements. This can be combined with a high capacity high effiecny fans capable of moving 2100m3/ hr in a small foot print the machines can be located inside or outside the factory.
The single cartridge filter capable of filtering particles down to 1 micron provide a cleaner work place when combined with manual cleaning provide effective filtration while reducing the number of unnecessary cleaning cycles and noise associated with automated cleaning systems.

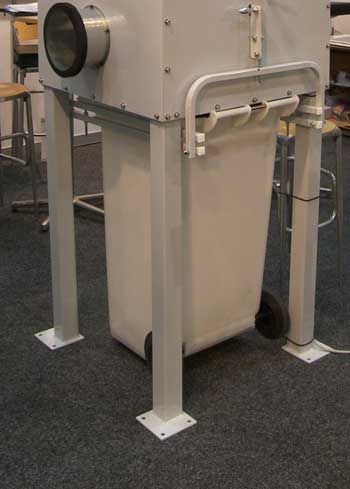

The ECO comes complete with a 240 Ltr Wheelie bin to collect dust. These bins can be fitted with a plastic bag to eliminated dust during the empting process and when combined with appropriate manual handling equipment can eliminated manual handling problems often associated with twin bag style dust extractors.
Each machine is Australian designed and built from powder coated steel with stainless steel fittings to enable the units to be installed either inside the factory or outside where it’s fully sealed design makes it weather proof.
